Wind turbine mast with base for flat roof

Mast* 3m high with base plate or cross base for various wind turbine sizes, e.g. flat roof mounting or on concrete surfaces

*Delivery without the wind turbine shown as an example and without anchoring screws

Can be used for horizontal turbines type H or vertical turbines type V, depending on the variant

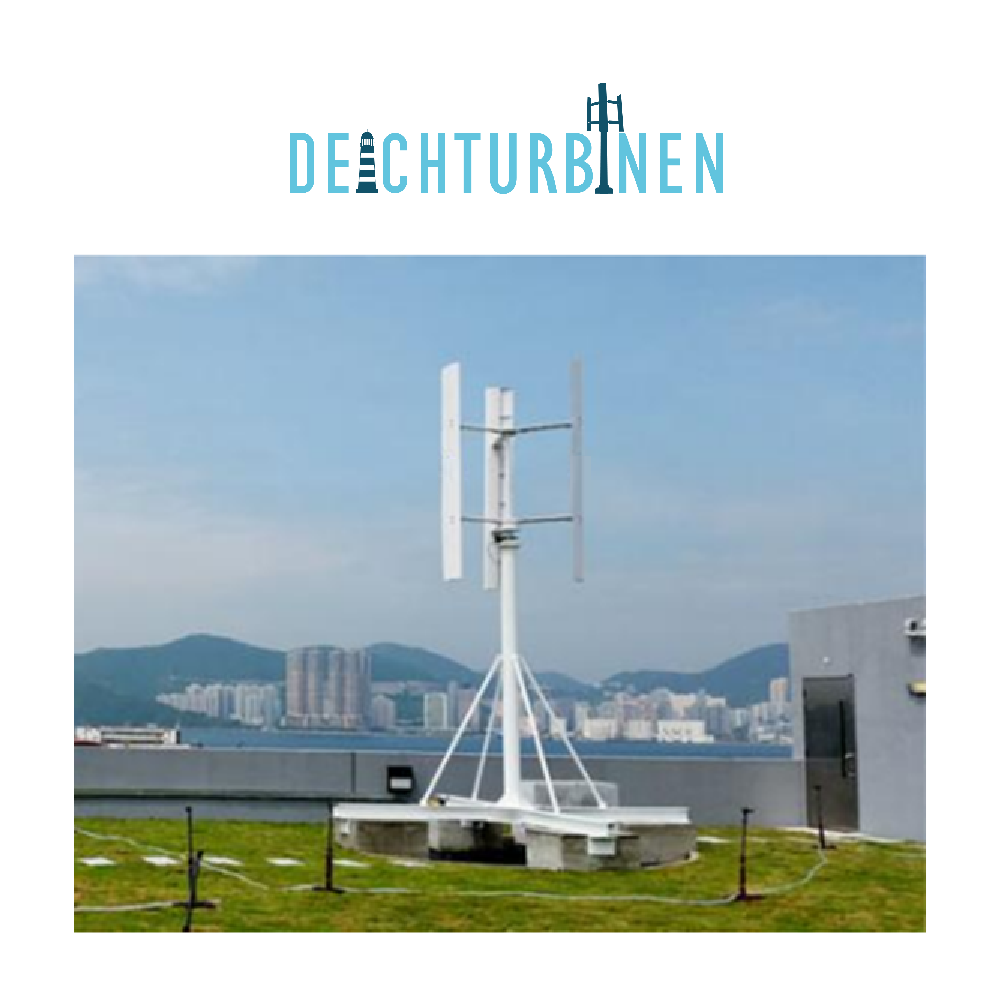

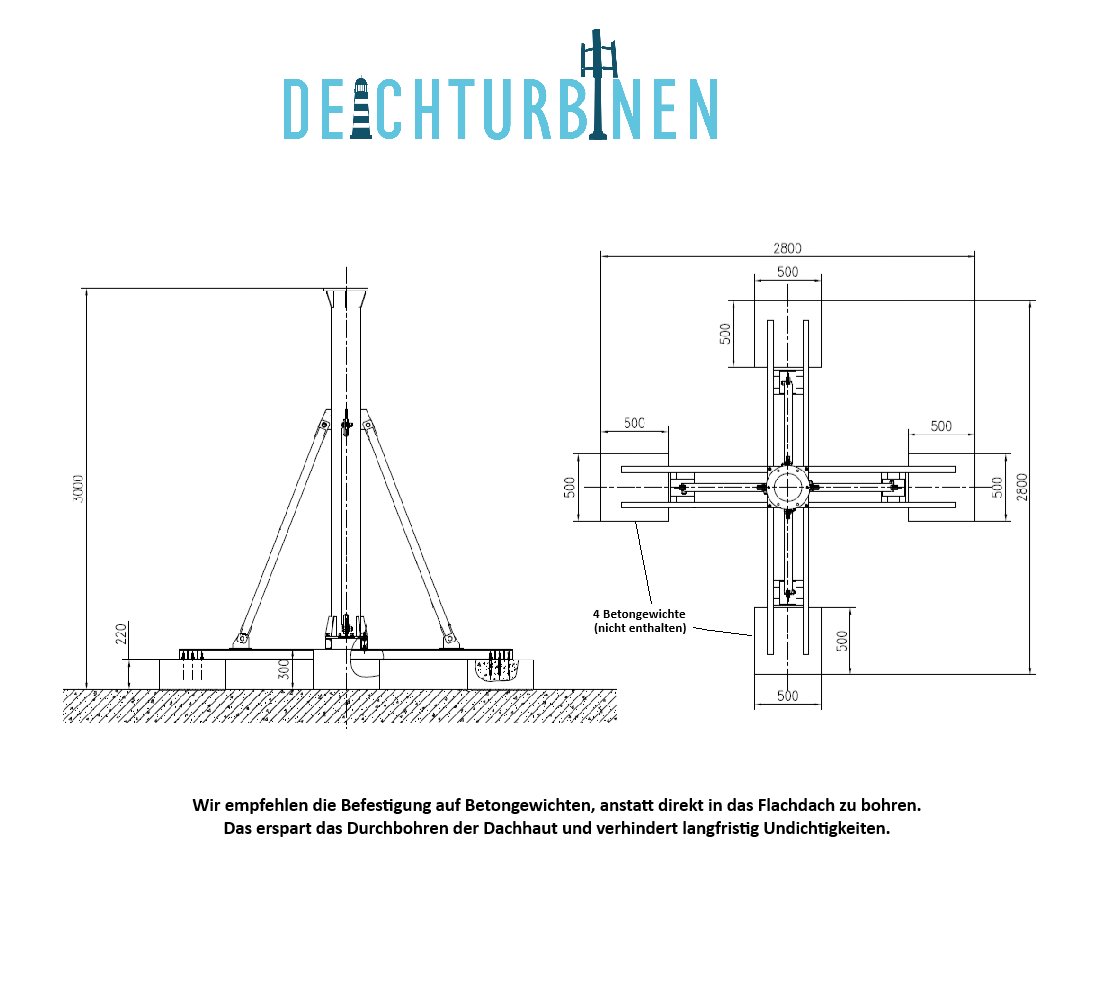

• Variant 1 with cross base incl. mounting system for Deichturbinen V600 / V1000 / V2000

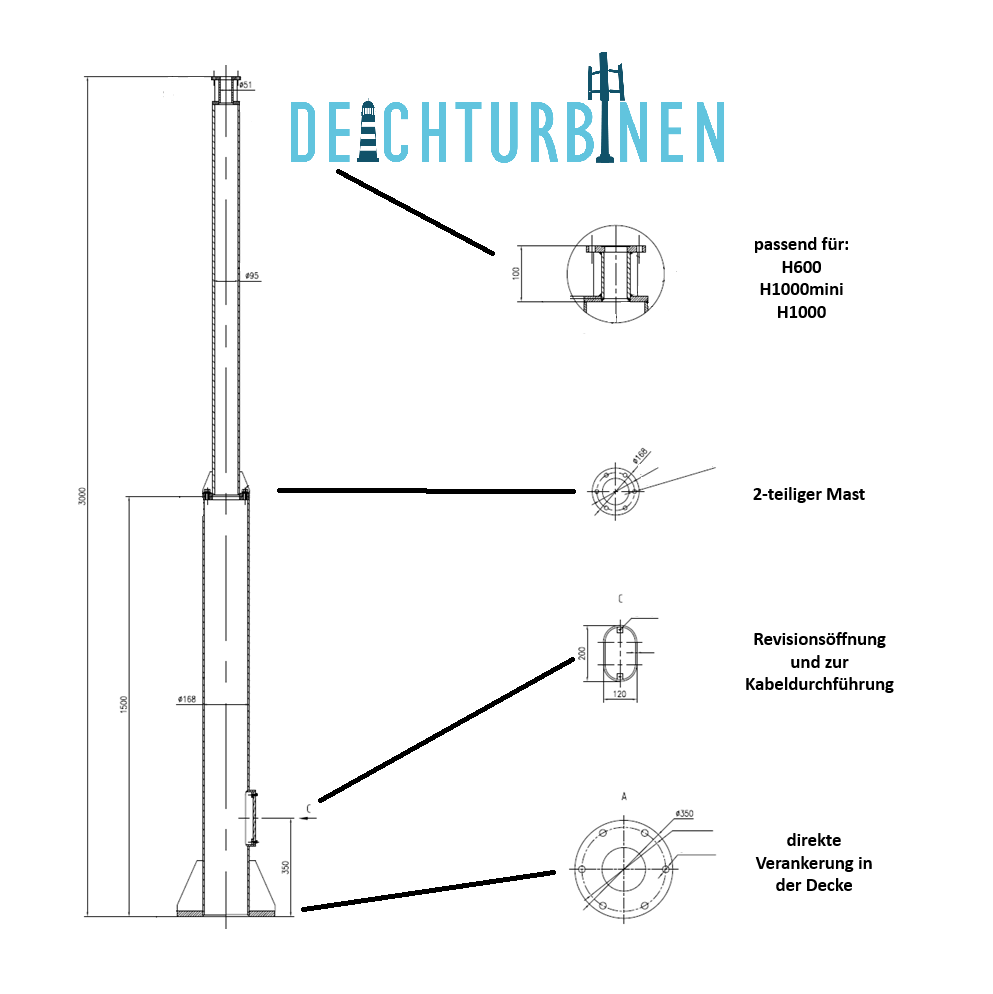

• Variant 2 with foot plate incl. mounting system for Deichturbinen H600 / H1000 / H1000Mini
• Surface protection and can therefore also be used permanently in sea air (e.g. on the North and Baltic Seas)
• Fastening directly to the flat roof or variant 2 alternatively on weights (without drilling through the roof cladding)

Delivery time variant 1, size S, immediately from stock Wremen (CUX)

Would you like to make your own bracket or mast? We will be happy to provide you with the dimensions of the connecting flange after you have purchased our wind turbines!
