Ground anchors for secure cable anchoring – for wind turbine towers & guy wires

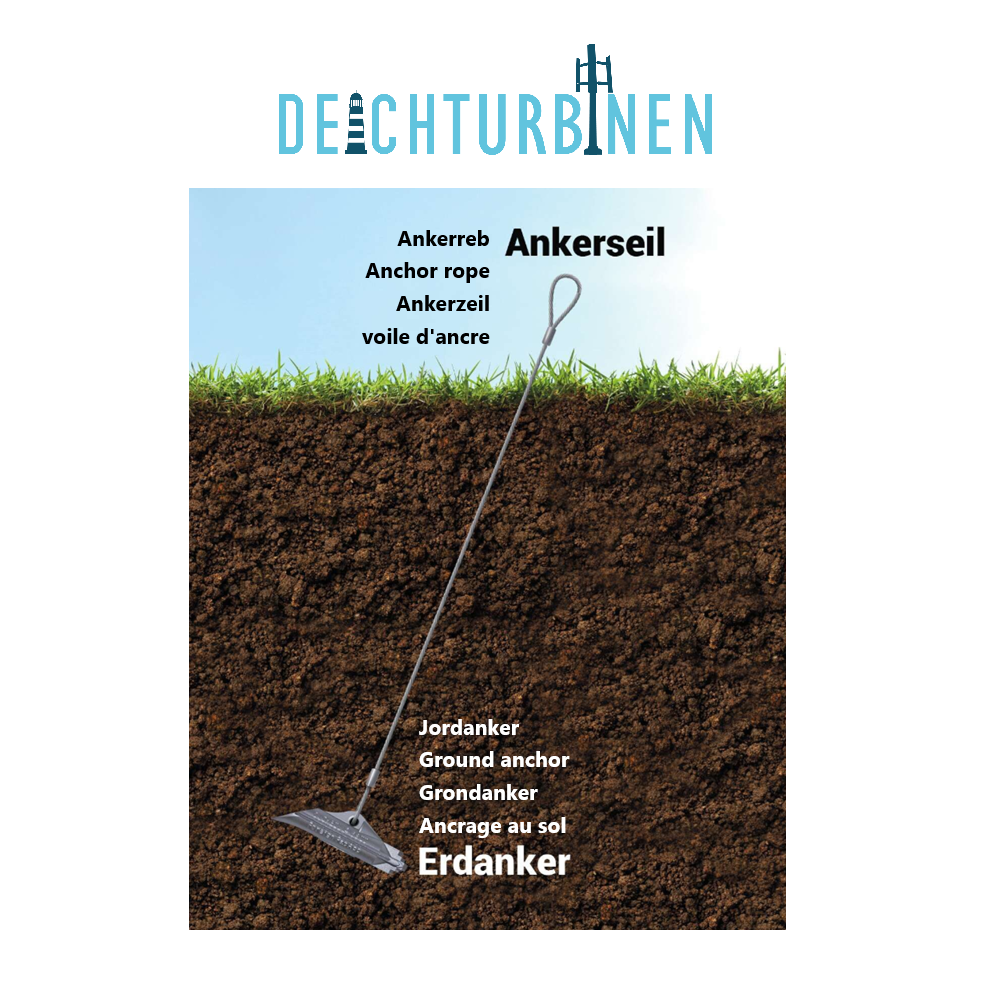

Our ground anchors for cable guy wires are the ideal alternative to the

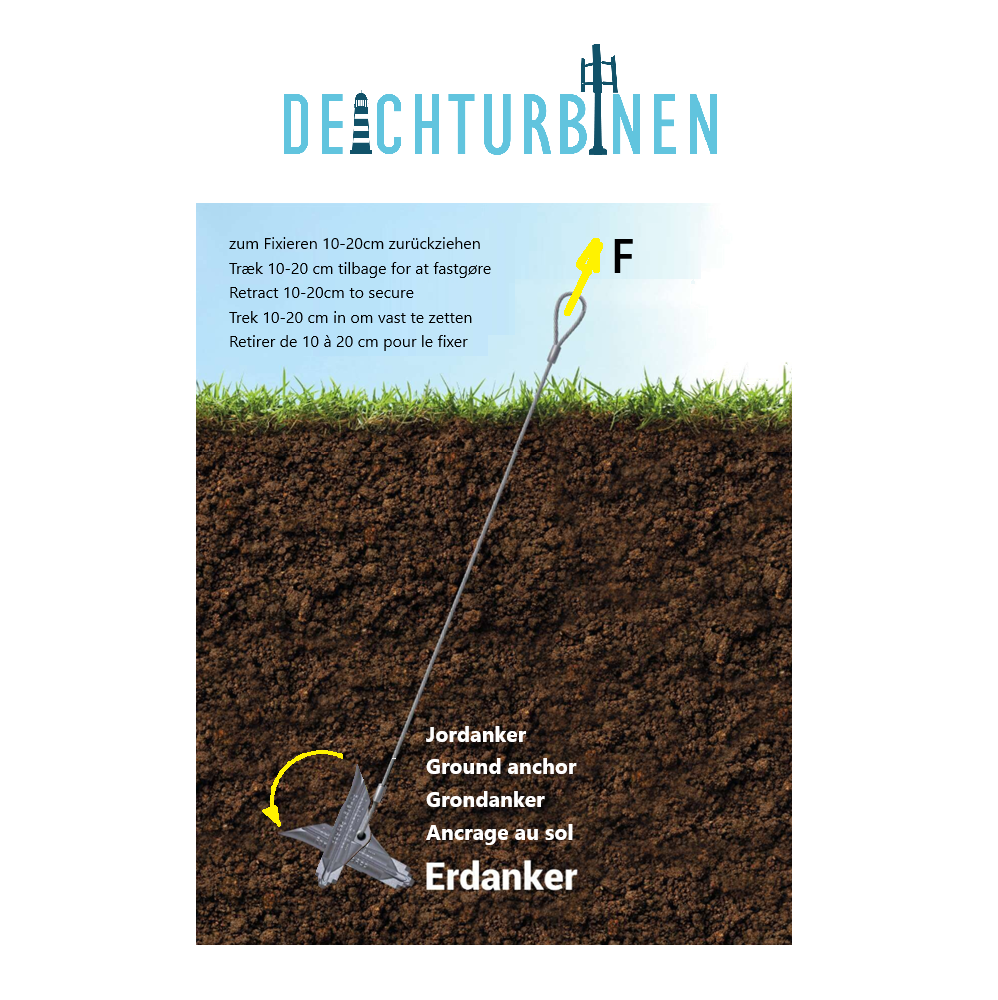

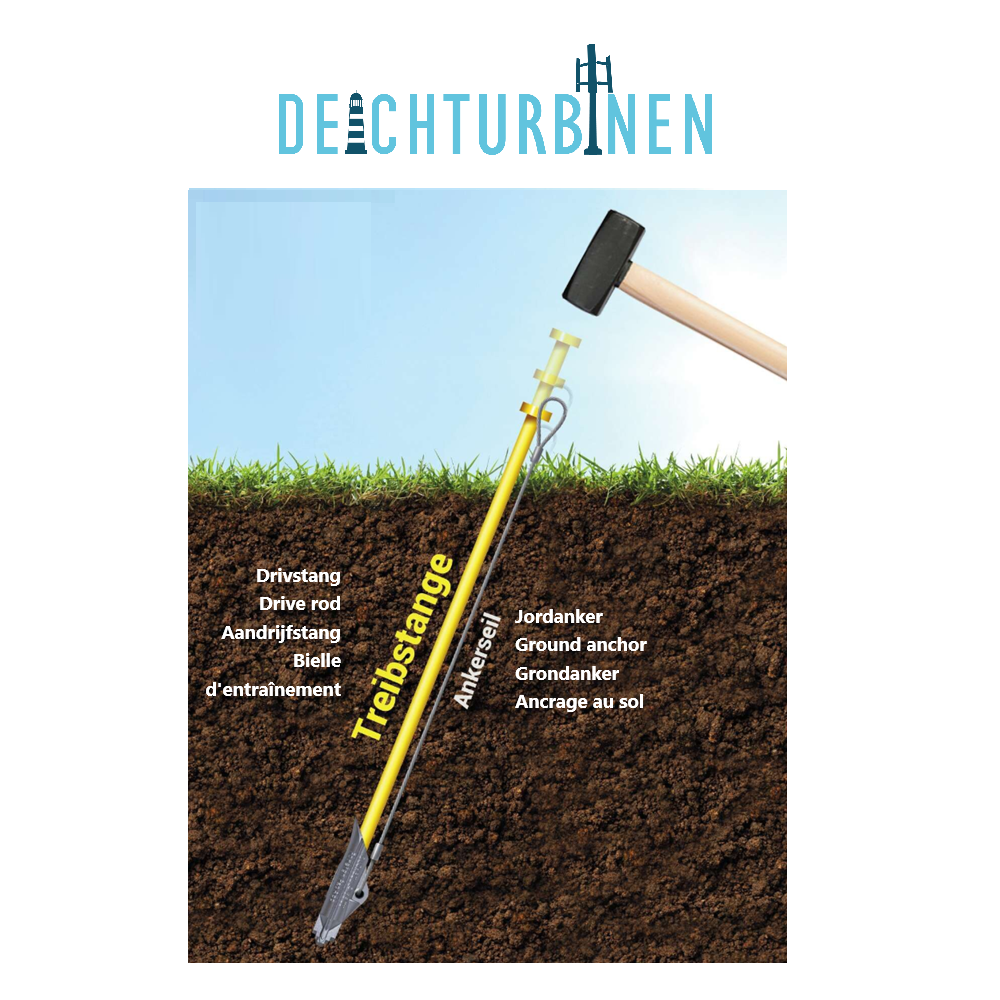

time-consuming process of pouring concrete for foundation points. The anchors are simply driven into the ground using a
driving rod and provide extremely high holding force
for wind turbine towers, guy wires, and other tension loads.
All models are made of sturdy steel and come in various
Load classes ranging from 140 kg to 1,365 kg are available. Matching drive rods
as well as high-quality accessories such as cable tensioners and locking hooks are also available.
Advantages of Ground Anchors
- No concrete required —ready for immediate use
- High holding force up to 1,365 kg (13.4 kN)
- Ideal for wind turbine towers, guy wires, tents, and nets
- Sturdy steel construction
- Matching tie rods available
- Sets of 3 ground anchors + a support pole are available
Available Variants
- Erdanker 40-DT – 140 kg (1.4 kN), rope Ø 3 mm, length 50 cm
- Erdanker 68-DT – 500 kg (4.9 kN), rope Ø 4 mm, length 75 cm
- Erdanker 88-DT – 1,365 kg (13.4 kN), rope Ø 5 mm, length 105 cm
Tie rods
- 40-DR – Ø 10 mm, length 63 cm
- 68-DR – Ø 14 mm, length 97 cm
- 88-DR – Ø 20 mm, length 147 cm
You can also use your own steel rod, provided it is suitable for driving into the ground.
We rent out tie rods at affordable prices. Please inquire!
Note on Technical Specifications: Due to ongoing product improvements, technical specifications are subject to change. We always ensure compliance with the currently valid specifications.
Complete Sets
- Set 40-DT3 – 3 ground anchors + 1 drive rod
- Set 68-DT3 – 3 ground anchors + 1 drive rod
- Set 88-DT3 – 3 ground anchors + 1 drive rod
Accessories
- Locking hook
- Stainless Steel V4A M6 Cable Tensioner (for 3–4 mm cable)
- Stainless Steel V4A M8 Cable Tensioner (for 5 mm cable)
Technical data
| Parameter | Meaning |
|---|---|
| A | Rope load (kg / kN) |
| C | Cable diameter (mm) |
| D | Length of the connecting rod (cm) |
| E | Length of the rope at the anchor (cm) |
Applications
- Wind Turbine Tower Anchors
- All types of cable tensioning systems
- Tents, Nets, Outdoor Installations
- Temporary and Permanent Tensile Load Fasteners
