PV Solar Tracker 2-axis, tracked PV system

Tracking PV system with 2-axis drive and controller which always positions 4-8 PV modules 1.6-4kW at the optimum angle to the sun

The Deichturbinen POWERTracker kit is complete:

1. Mounting system for PV modules in various standard sizes
2. Frame and stand made of spray galvanized steel
3. Pole for floor mounting and mounting of frame and drive unit
4. Anchoring set for the foundation (with positioning template), available in advance
5. Electric 2-axis drive

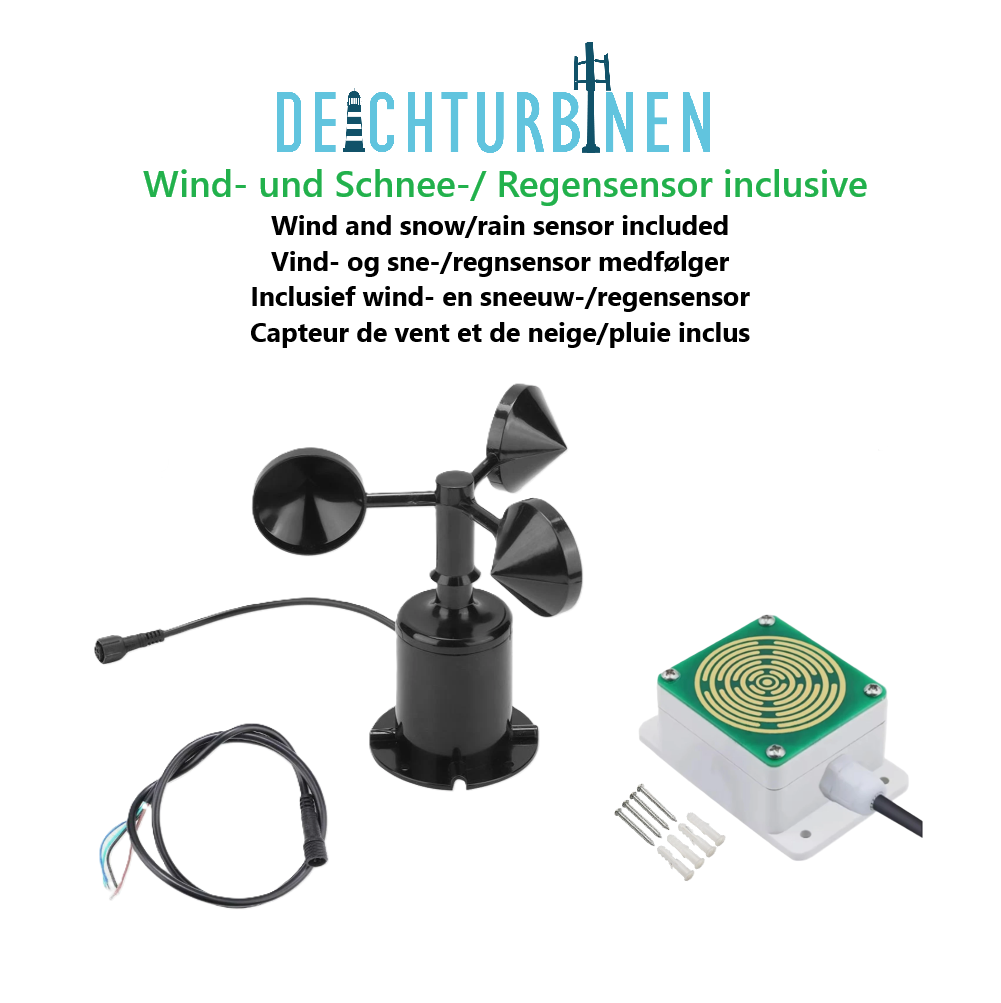

6. Aneometer (wind speed meter)
7. Snow load and rain sensor

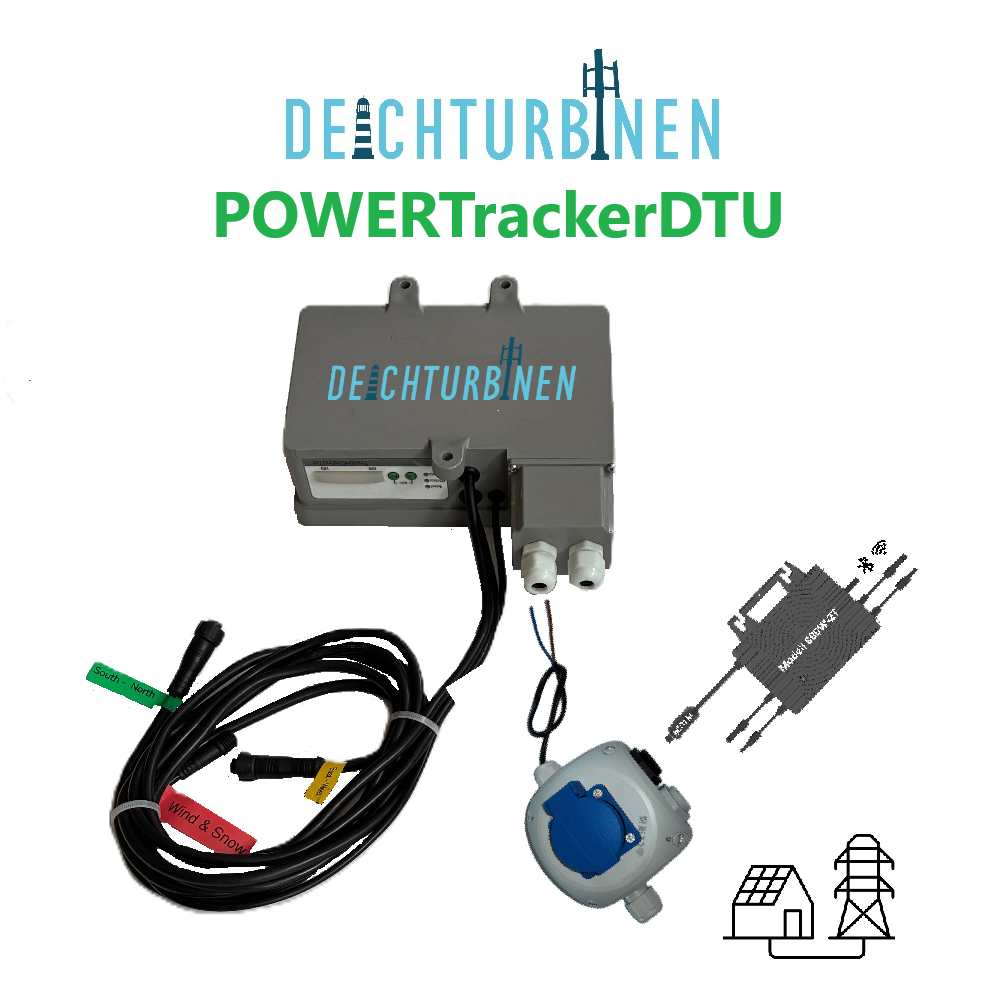

8. CNC control unit to match the drive
9. Screws. Nuts, washers and small parts for assembly
10. Drawing for the concrete foundation
11. Manual in English, German, Dutch, or Danish
12. Service by Deichturbinen

Only solar modules and inverters are not included!

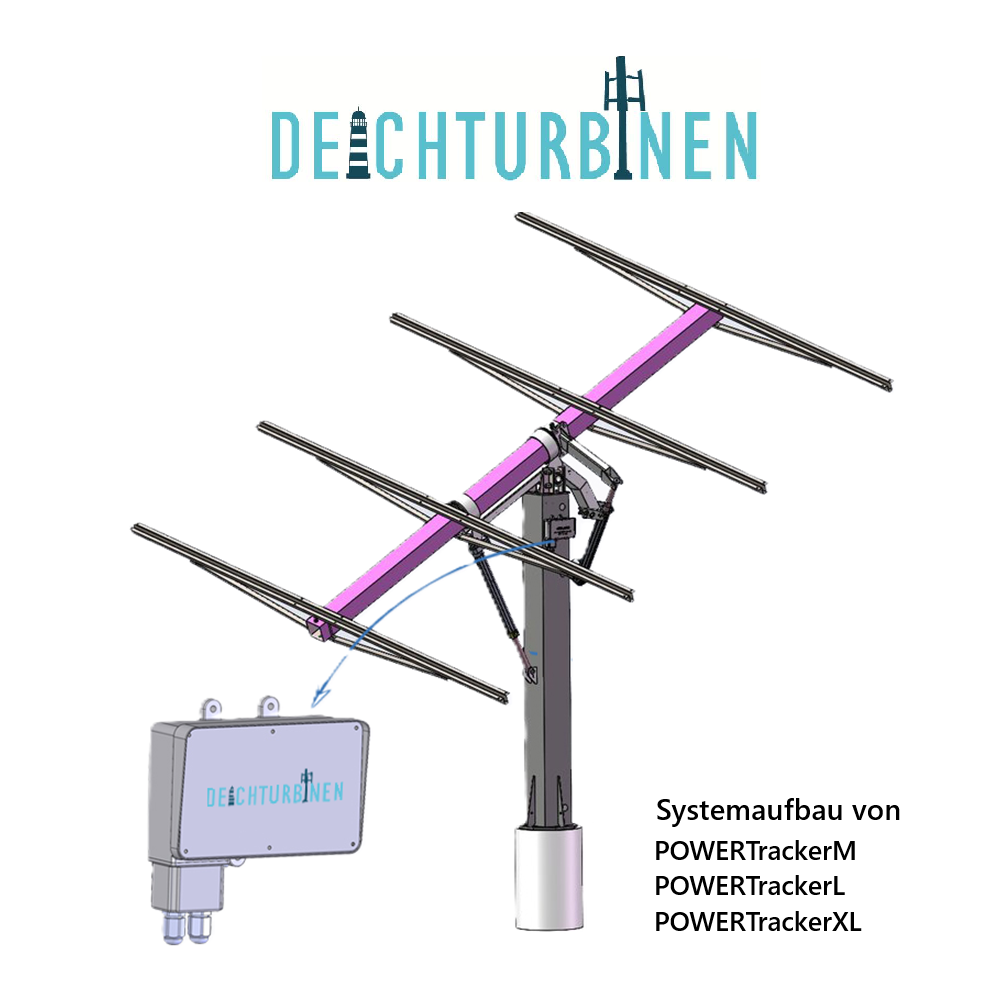

POWERTrackerM/L/XL

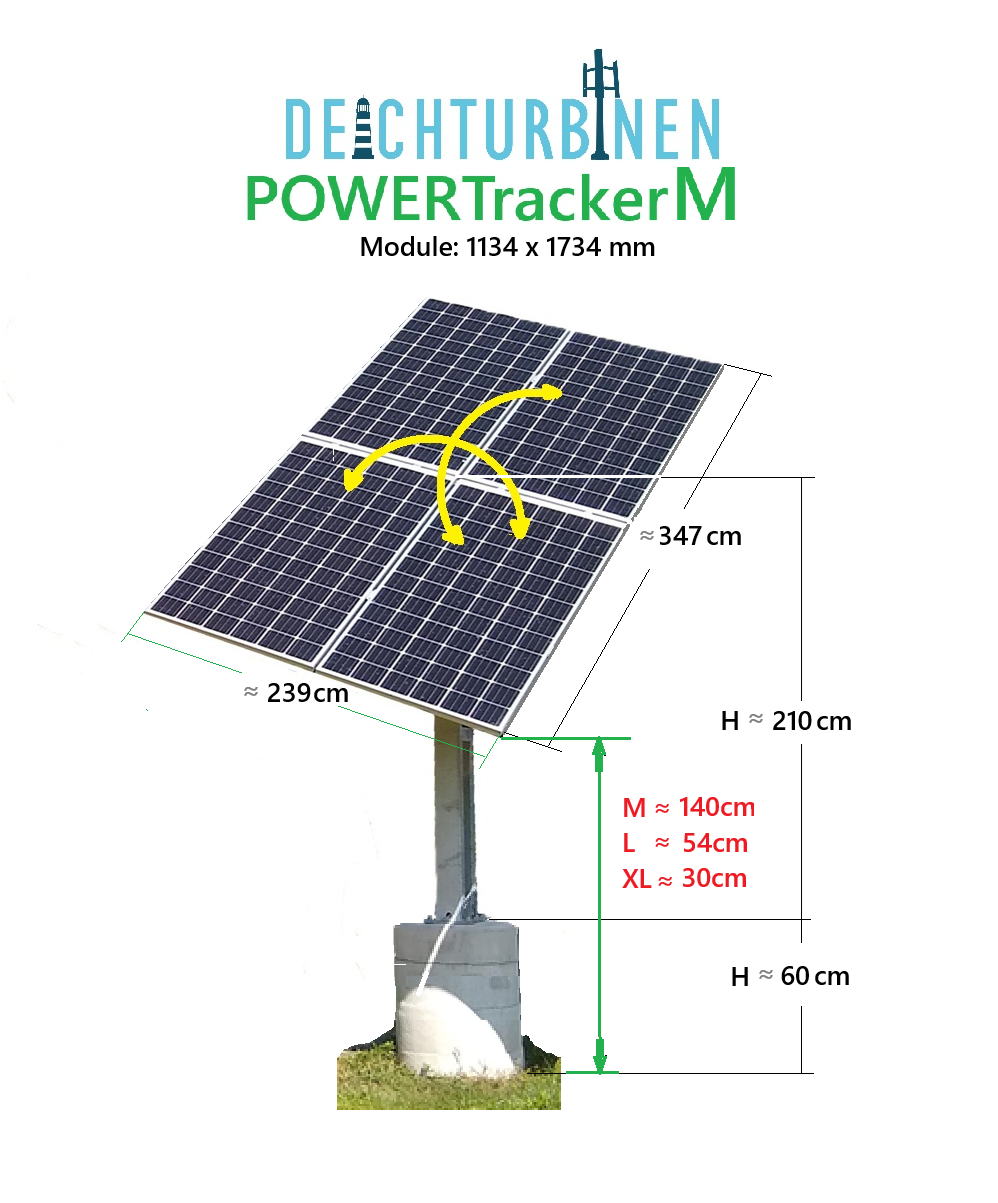

• Central pole height: 2m plus 0.6m foundation base (our recommendation)
• Minimum clearance height XL (lowest point at steepest setting) = approx. 30 cm
• 0.6 m or 1.5 m screw-in mast extension available as an option
• 230V connection for control unit and drive -> No backup battery required!
• Antriebsdrehmomente 2400Nm
• Determining the position of the sun via GPS and astronomical circuit -> always ideal position
• turns out of the wind at 24m/s = 86km/h (adjustable)
• Automatic emergency position in the event of a storm (safety position)
• also usable in strong wind areasup to 40m/s = 144km/h

POWERTrackerM

• for 4 standard modules 1134 x 1714-1974 x 30mm
• max. usable area approx. 230 x 400cm (approx. 1600-2000Wp)

POWERTrackerL

• for 6 standard modules 1134 x 1714-1974 x 30mm
• Usable area approx. 350 x 400cm (approx. 2400-3000Wp)

POWERTrackerXL

• for 8 standard modules 1134 x 1714-1974 x 30mm
• Usable area approx. 460 x 400cm (approx. 3200-4000Wp)

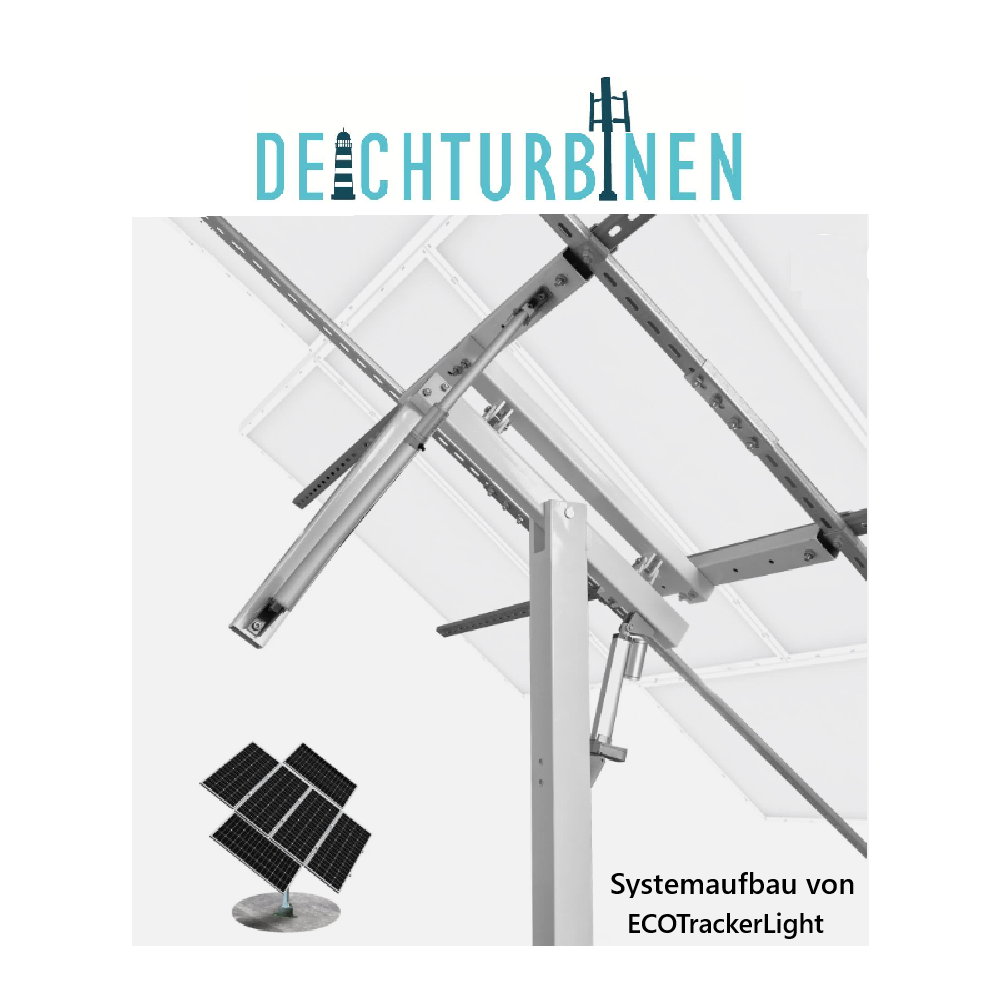

ECOTrackerLight

• Holder for 6 small modules with 500-700mm width
• max. usable area 290 x 290cm (approx. 800-1000Wp)
• Aluminum frame and stand
• Drives with 1500N force each
• 12V connection for control and drive -> Backup battery required (not included)!
• Determining the position of the sun via 3D sun sensor -> Possible loss of position with partial cloud cover
• turns out of the wind at 17m/s = 61km/h (emergency position)
• Manufacturer recommends dismantling the solar panels if wind speeds exceed 61 km/h!
• not suitable for strong wind areas, max. 30m/s = 108km/h
• Inverter not included!
